Home » Jungheinrich Forklifts » EFX 410

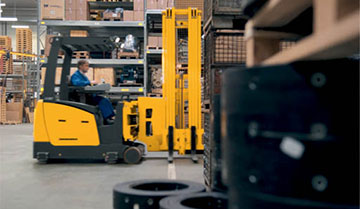

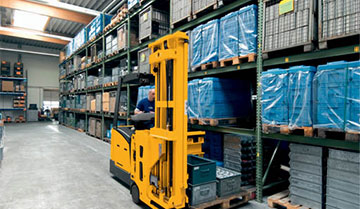

The EFX 410–413 turret trucks are designed to provide maximum versatility in very narrow aisle (VNA) warehouses.
The Jungheinrich® 3-phase AC motor and high-output AC controller deliver greater power and quick acceleration.
Unobstructed visibility of the forks, load and travel route helps the operator deliver/retrieve the pallet faster.
Up to two shifts on one battery charge and up to 1,000 hour service intervals means your turret trucks stay on the job longer.
Optional Warehouse Navigation System optimizes truck movement and provides automatic vertical and horizontal truck positioning.
Electrically monitored battery locking prohibits the man-down turret truck from driving unless engaged.
Optional Personnel Protection System senses the presence of pedestrians in working aisles and alerts the operator; slows and/or stops the truck as necessary.
Double benefit of energy regeneration – when braking and when lowering – and effective energy management.
Get up to two full shifts with one battery charge in a typical application.
CAN-Bus communication reduces cables and plugs by 70%, increasing efficiency.
Cushioned, cloth seat absorbs vibrations and is adjustable for height and weight.
Centrally-positioned control panel includes effortless electric power steering and thumb-activated hydraulic functions.
Unobstructed visibility of the forks, load and travel route reduces operator strain.
Increase efficiency and output with the double benefit of energy regeneration and effective energy management.
Lower energy consumption and run costs due to excellent efficiency of AC technology.
AC motor is designed for greater durability and helps to lower maintenance needs and provide greater uptime.
Electronic systems utilize wear-free sensors.
Jungheinrich’s service tool gives technicians the ability to easily monitor and service the forklift’s vital functions, helping to maximize uptime.
Extended 1,000 hour service intervals means less maintenance and service over the lifetime of the forklift.
| Model | Basic Capacity (lbs) | Maximum Fork Height2 | Voltage (or Fuel Type) | Length to Fork Face | Chassis Width (in) | Chassis Height (in)1 | Gross Weight (lbs)1 |
|---|---|---|---|---|---|---|---|
|
EFX 410 |
2,200 |
275 |
48 |
116.4 |
61 |
89.6 |
11,200 |
|
EFX 413 |
2,750 |
275 |
48 |
116.4 |
61 |
89.6 |
11,817 |
¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
Talk to a Jungheinrich specialist who can help find the best solution for your needs and budget.
